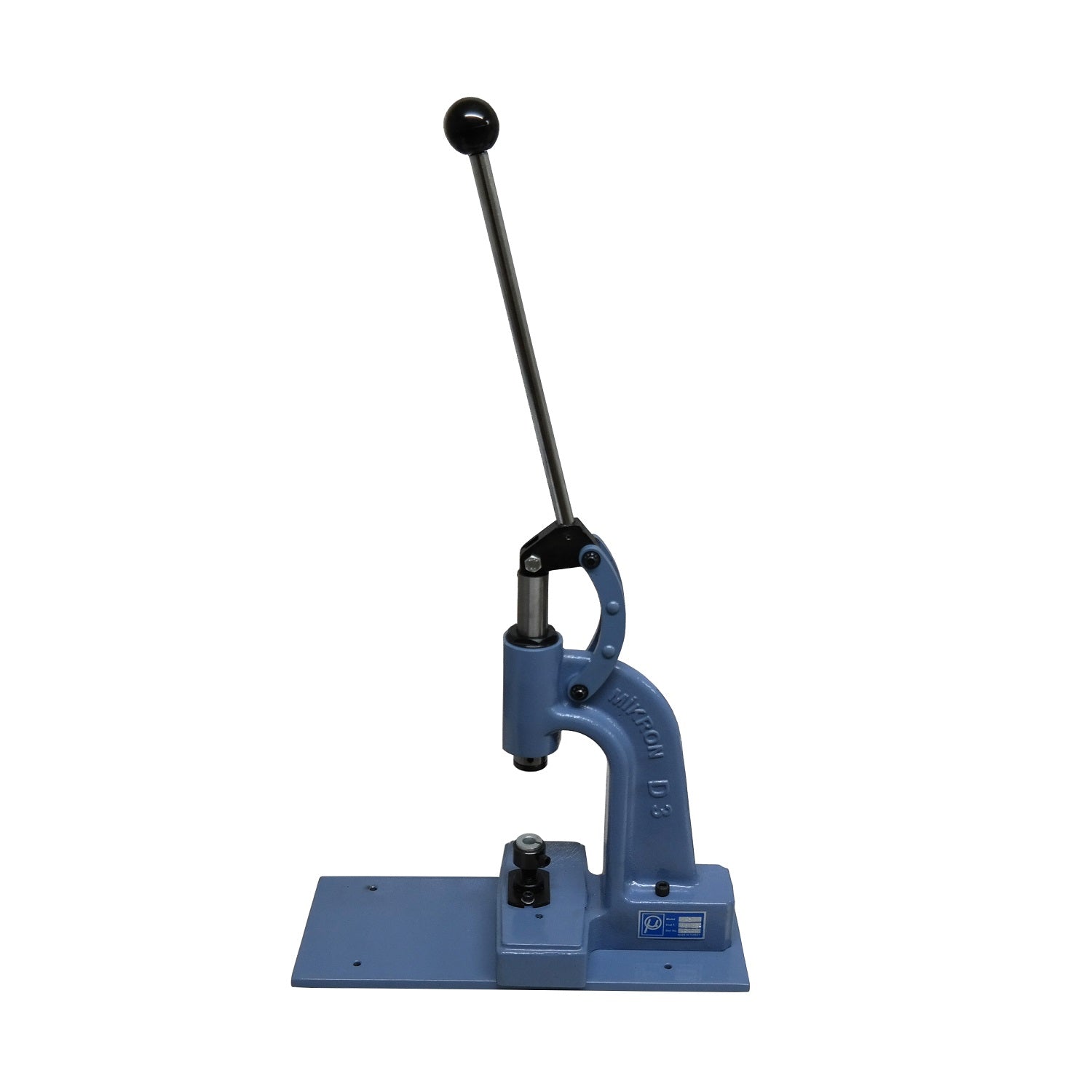

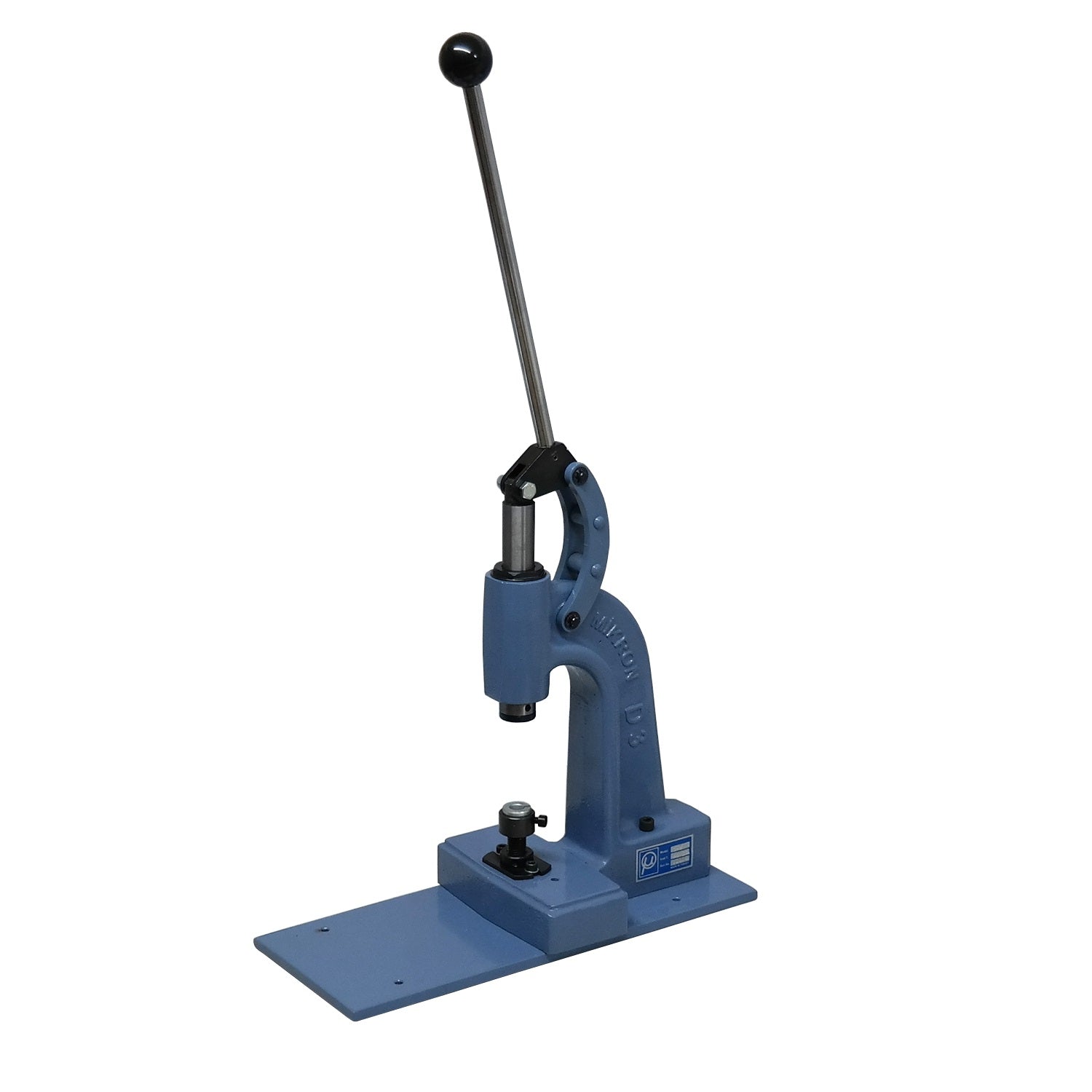

The versatility of this amazing press is simply unmatched among manual toggle presses.
This toggle press is specifically designed for attaching larger diameter eyelets. The D-3 does an excellent job when installing eyelets as well as hollow rivets, snap fasteners, jeans buttons or punching holes with punching tools.
If you are looking for a simple manual toggle press for attaching eyelets, snaps, hollow rivets or jeans buttons, this is it. This inventive press can be used in a variety of ways with the appropriate tools.
You can also use the Mikron D-3 toggle press to quickly press self-tapping DIN eyelets in one operation.
- easy to use

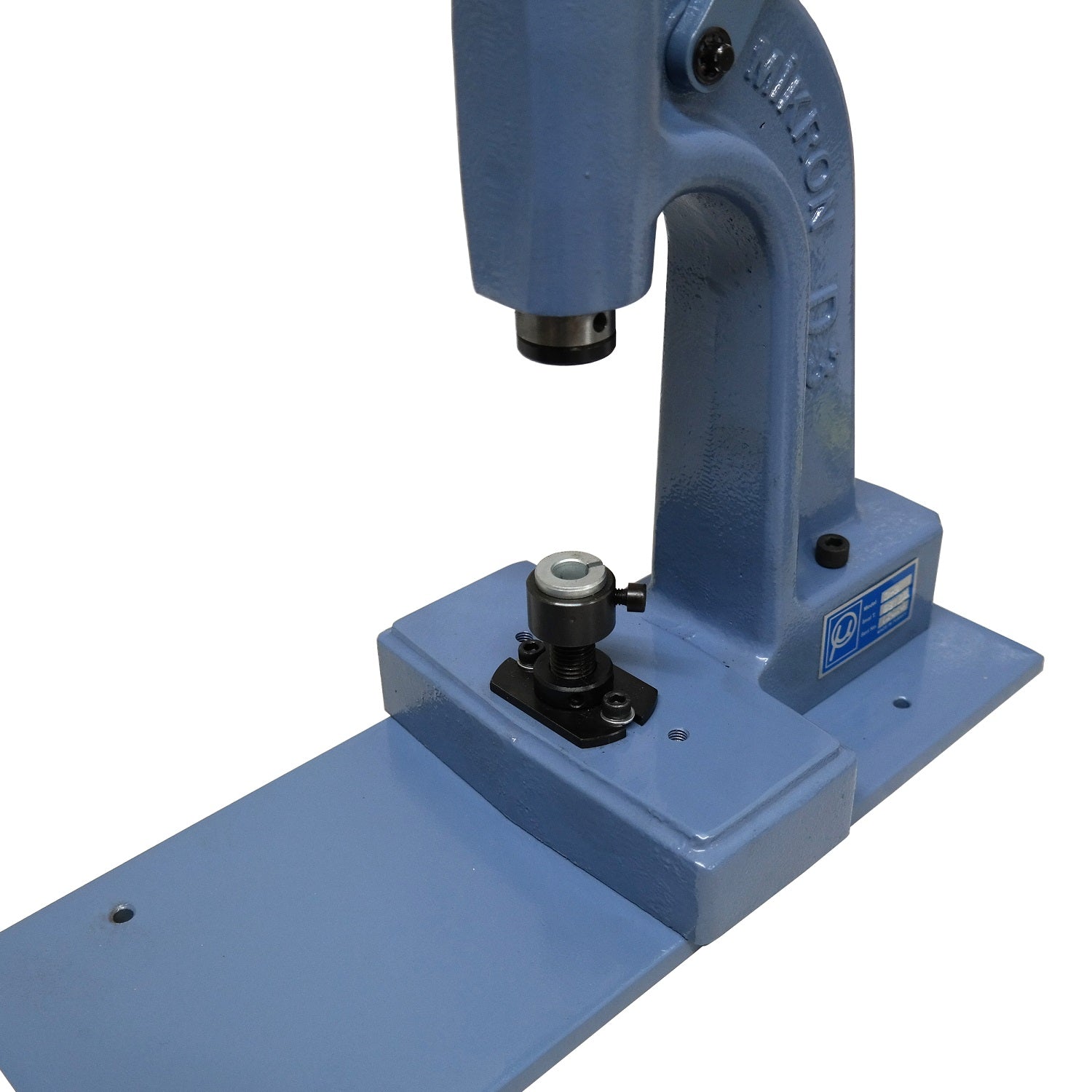

- height-adjustable mount at the bottom
- with additional insert tool suitable for: DIN eyelets, T-1 or T-3 eyelets, hollow rivets, snap fasteners, jeans buttons, shoe hooks, hole tools and much more
- Suitable for eyelets (standard) made of brass or steel up to 25mm
- for eyelets according to DIN 7332made of brass, steel or galvanized up to max. 16mm possible in one operation with the appropriate die.
- for eyelets according to DIN 7332made of stainless steel up to maximum 14mm suitable
- Thread (top): 1/4" UNC-20 (other threads also possible using an adapter)
- Socket 1 (bottom): 12mm, without socket 19mm.
- Weight 15 kg
